A max. counter-pressure of 4 bar at T is permitted for the variant with a microswitch (MS).
Max. pressure ports P/A/B 350 bar
Max. pressure port T (DC coil) see note (*) 250 bar
Max. pressure port T (AC coil) 160 bar
Max. fl ow 100 l/min
Max. excitation frequency 3 Hz
Duty cycle 100% ED
Fluid viscosity 10 ÷ 500 mm2/s
Fluid temperature -25°C ÷ 75°C
Ambient temperature -25°C ÷ 60°C
Max. contamination level class 10 in accordance with NAS
1638 with fi lter s25≥75
Weight (with one DC solenoid) 4 Kg
Weight (with two DC solenoids) 5,1 Kg
Weight (with one AC solenoid) 3,5 Kg
Weight (with two AC solenoids) 4,3 Kg
(*) Pressure dynamic allowed for 2 millions of cycles.

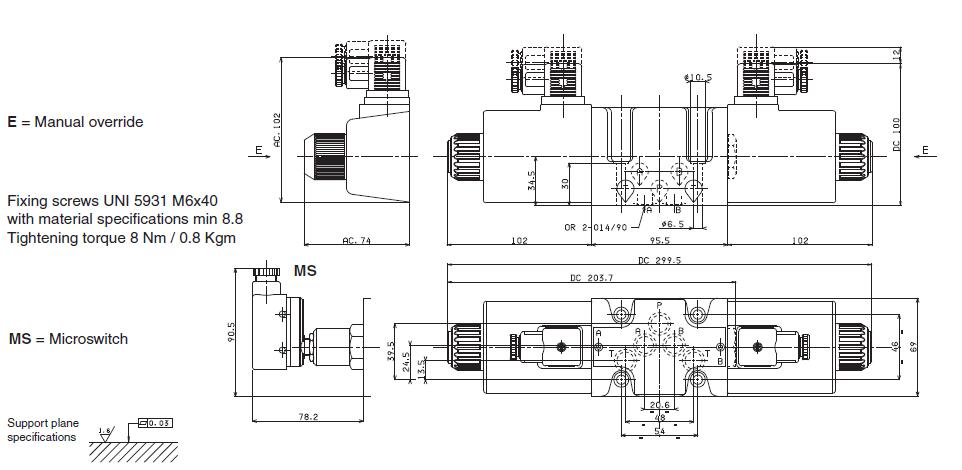

AD.5.E...OVERALL DIMENSIONS：
ARON電磁閥 AD5E系列控制閥是上海維特銳長期供應的產品！下面是ARON電磁閥AD5E系列的選型資料：
